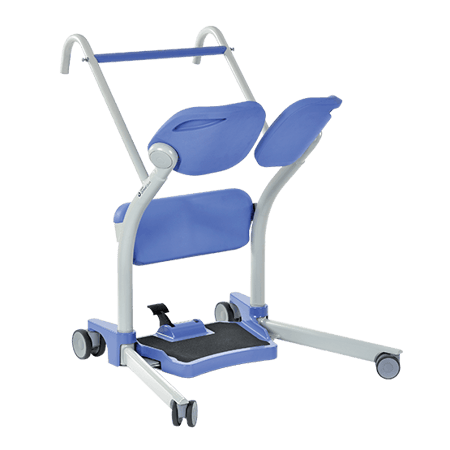

Oxford Up Transfer Aid

The Oxford Up is a uniquely designed manual stand-aid and transfer device, suitable for those who require assistance when standing but are able to contribute effort to the process. By encouraging user participation, the Up can play a supportive role in patient rehabilitation, function, and independence. Key Features: Safe Working Load 200kg / 31st / 440Ibs Disassembles for easy storage and transportation Adjustable legs for access around furniture Contoured swing-away seat pads Ergonomic design considerations Compatible sling offer for additional support Technical Specifications Safe Working Load 200 kg (31 st) Overall Height (A) 1,100mm Overall Length (B) 950mm Overall Width (C) 630mm Legs Open - External Width (D) 845mm Legs Open - Internal Width 725mm Legs Closed - External Width (E) 600mm Legs Closed - Internal Width 480mm Leg Height 110mm Knee Pad Height (Footplate to top of pad) 483mm Foot Plate Height 52mm Ground Clearance 26mm Turning Radius 1,040mm Front Castors 75mm Rear Castors (Braked) 100mm
